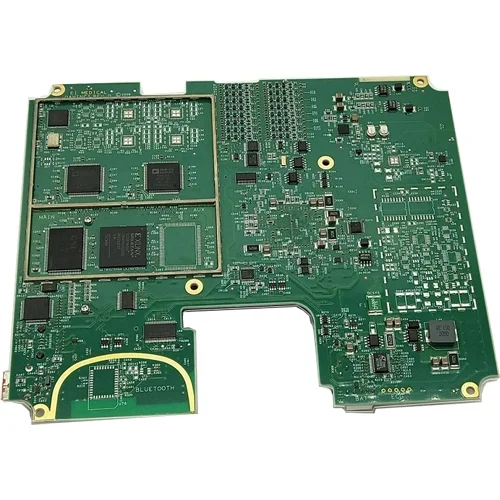

double sided SMD boards assembled
Name：Electronics Medical PCBA and PCB Assembly
Condition：New
Certificate：ISO9001/ISO13485/IATF16949
Solder Mask：Green
Min. Hole Size：0.20 mm
Min. Line Width：0.1mm
Copper Thickness：0.5 Oz ~ 7.0 Oz
Min. Line Spacing：0.075mm
Board Thickness：0.35mm ~ 7.0mm
Surface Finishing：HASL Lead Free
Transport Package：Anti-Static Bag + Bubble Packing +Carton
Specification：128.5mm x 118mm x 156.2mm
Trademark：Customized
Origin：Shenzhen
Production Capacity：500000PCS/Months
Product Description
Shenzhen Kingford Technology Co., Ltd,we have more than 15 years' experience in PCBA contract manufacturing, professionally providing SMT, DIP, MI, AI, PCB assembling, conformal coating, final product assembling, testing, material procurement ,and one stop services such as wire harness, sheetmetal , plastic injection to make up complete product for customers. Our factory has a number of lines of SMT, assembly and testing, well-equipped with brand-newly imported Juki and Samsung SMT machine, full-automatic solder paste printing machine, ten temperature zone reflow oven and wave-soldering oven. Our factory is also equipped with AOI, XRAY, SPI, ICT, full-automatic splitting machine, BGA rework station and conformal coating machine, with air conditioner and dust-free workshop and lead-free manufacturing process. We have passed ISO9001:2015 international quality management system, IATF16949:2016 automotive industry quality management system and ISO13485:2016 medical device quality management system.
Our PCBA and products are widely used in industrial control, medical device, food equipment, laser module, communication device, PLC module, transducer module, traffic control, automobile, smart home system, smart POS. We cooperate with worldwide clients and have long-term cooperated customers in USA, Canada, Germany,UK, Germany, Switzerland, Australia etc. which can be your reference.
Superior Quality
ISO9001 certified company, We have a very robust quality system and professional quality team;
Reliable Supply Chain,We have established long-term strategic cooperation with the top electronic components manufacturers all over the world, such as Xilinx, TI, Avnet, Future and etc;
High manufacturing capability, our PCB can reach a max layers of 64, minimum placement component size can meet 0201 and minimum placement spacing of BGA can meet 0.3mm;
We have complete inspection and testing for PCBA, including SPI,AOI,ICT,FCT,X-RAY,ROHS and aging.
Fast Turnaround
We offer fast and opened BOM quotation to customers;
10 years of cooperation experience with European and North American clients, quickly and professionally respond customer requirements.
Turnkey Service
We professionally offer the service of PCB Assembly (SMT, DIP, MI, AI), component procurement, product final assembly, testing, PCBA conformal coating, electronic product design and peripheral products support, etc;
Our factory is located in Shenzhen, and besides we have warehouses in Hongkong, Europe and North America. We can prepare boards at the warehouse which is close to the customer and afford Kanban service according to customer requirements.
IP Protection
Strong believe in IP protection with proven records
Our SMT&DIP machines list:
| No | Machine name | Machine Type | Qty | Manufacture | Capacity | Remarks |
| 1 | (GKG) Auto. Printing machine | GKG-G5 | 3 | GKG | Cycle Time:<15s<> | Plate size:420*520mm-737*737mm Size of printable board:50*50mm-400*310mm Printing Accuracy:±0.025mm Repeated Accuracy:±0.01mm |
| 2 | (SAMSUNG/JUKI) Placement machine | SM481 | 2 | SAMSUNG | Placement speed: 39000 CPH | Corresponding element:0201-55mmIC(H 15mm) Placement accuracy:Chip±0.05mm,QFP±0.03mm Min Size of board:50mm(L)*40mm(W) Max Size of board:740mm(L)*400mm(W)(Standard) |
| SM482 | 1 | SAMSUNG | Placement speed: 28000 CPH | Corresponding element:0201-55mmIC(H 15mm) Placement accuracy:Chip±0.05mm,QFP±0.03mm Min Size of board:50mm(L)*40mm(W) Max Size of board:740mm(L)*400mm(W)(Standard) | ||
| SM421 | 1 | SAMSUNG | Placement speed: 21000 CPH | Corresponding element:0201-55mmIC(H 15mm) Placement accuracy:Chip±0.05mm,QFP±0.03mm Min Size of board:50mm(L)*40mm(W) Max Size of board:740mm(L)*400mm(W)(Standard) | ||
| KE-3020AL | 1 | JUKI | Placement speed: 17100 CPH | Corresponding element:0201-50mmIC(H 20mm) Placement accuracy:Chip±0.04mm,QFP±0.04mm Corresponding PCB Size:Min:40mm(L)*40mm(W) Max:650mm(L)*360mm(W) | ||
| KE-3010AL | 1 | JUKI | Placement speed: 18500 CPH | Corresponding element:0201-33mmIC(H 12mm) Placement accuracy:Chip±0.04mm,QFP±0.04mm Corresponding PCB Size:Min:40mm(L)*40mm(W) Max:650mm(L)*360mm(W) | ||
| 3 | (JT) Reflow oven machine | JTR-1000 | 1 | JT | 650-800mm/minute | Number of zone:10 Zones Temperature accuracy: +/-1ºC |
| AS-1000 | 1 | JT | 650-800mm/minute | Number of zone:10 Zones Temperature accuracy: +/-1ºC | ||
| NS-1000-N | 1 | JT | 650-800mm/minute | Number of zone:10 Zones Temperature accuracy: +/-1ºC | ||
| 4 | (SAMSUNG) IC cabinet | STF100S | 1 | HengKai | 22 kinds of materials | |
| 5 | AOI (JT) | JTA-300 | 1 | JT | 20000 Components/H | Color image matching Resolution:Standard 20um/pixel, Viewable range:44*33mm/32*24mm Speed:0.25 sec/FOV |
| ALD515 | 1 | Aleader | 20000 Components/H | Color image matching Resolution:Standard 20um/pixel, Viewable range:44*33mm/32*24mm Speed:0.25 sec/FOV | ||
| 6 | (JY) IC bake machine | 100 | 1 | Jingyi | Inside size L=600MM, W=500MM, H=1000MM | Temperature range:0-250(ºC) |
| 7 | BGA(LK) BGA Rework machine | LK-T6 | 1 | LK | Maximum hot air temperature: 400 °C High-precision temperature controller, temperature error of 1 ° | Size:69CM*55CM*48CM Welding success rate of up to 98% |
| 8 | (SUNEAST) Wave soldering machine | FM-350 | 1 | SUNEAST | Transmission speed: 500~1800mm/Min. | Board size: 50~350mm(W)*120mm(H) Board height: 750±20mm Preheating temperature: Max.200°C Tin furnace temperature: Max.300°C |
| 9 | X-Ray(Scienscope) | View X1800 | 1 | Scienscope | Image speed (fps):30 Detection range (cm2):0.05-30 | X-ray tube type:Transmissive closed tube Spatial resolution (um):5 Tube voltage (KV):90 (optional 100) Tube current (uA):256 Magnification:500X |
| 10 | Conformal Coating machine (ANDA) | iCoat-3 | 1 | ANDA | speed:Max 800mm/S | Repeated positioning accuracy:±0.02mm |
<15s<>Below are some photoes of SMT&DIP machines and Inspection machines

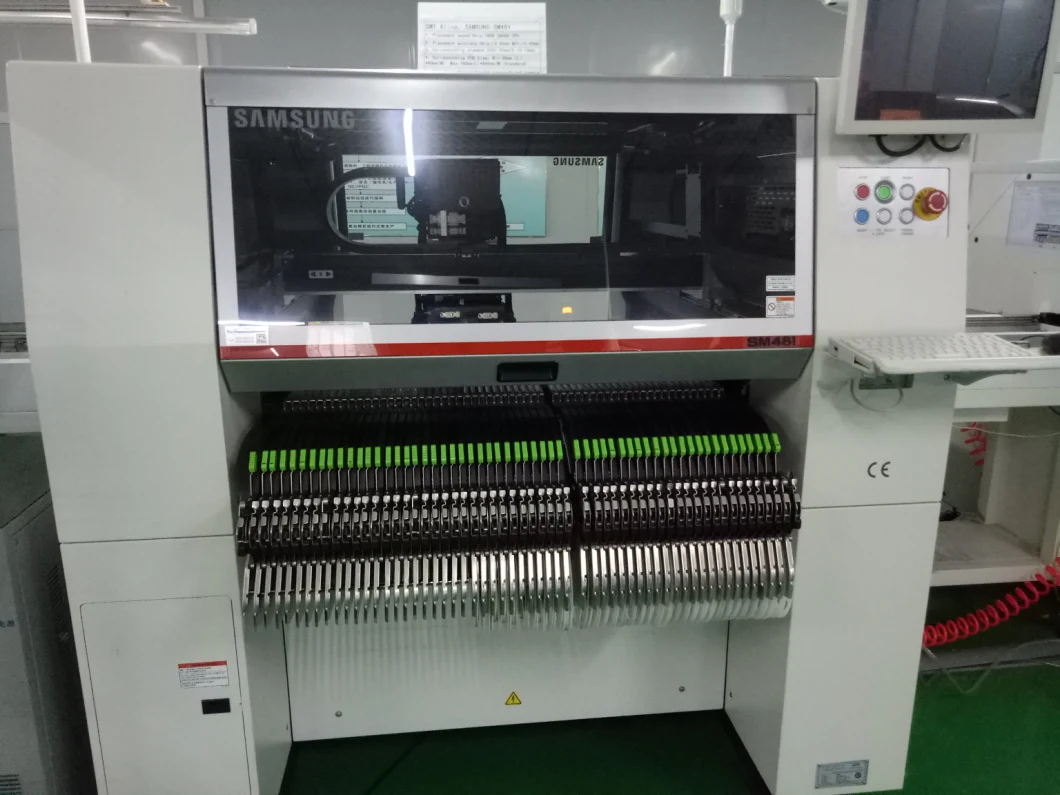

SMT-SM481&SM421
Our Services
We offer high quality PCB & PCBA Service for Industrial control Board, Financial Industrial Board, Automatic PCBs, New enery controller PCBAs, Medical equipment printed circuits and other high level circuit boards. We offer one-stop service for PCB , including PCB manufacturing, parts sourcing, X-RAY, AOI testing, Function testing, final assembly if requested.
Kingford supports double sided SMD boards assembled business, we are a professional PCBA one-stop assembly factory, welcome to place an order.
