Energy Storage Module PCBA
Energy Storage Module PCBA
High Power PCB Assembly

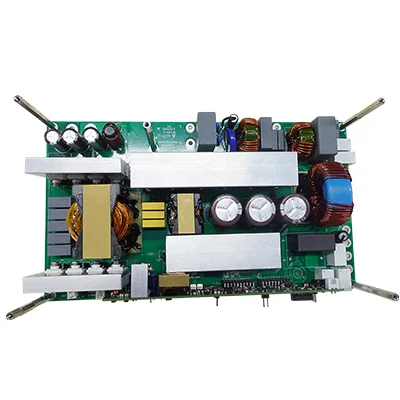

Bidirectional inverter module PCB assembly
Energy Storage Module PCBA

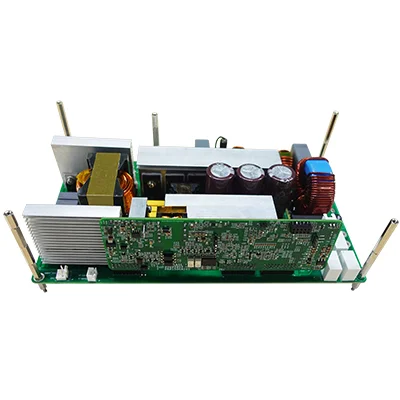

Bidirectional inverter module PCB assembly

Name:Bidirectional inverter module PCB assembly

Efficiency: Maximum Efficiency: 94.5%

Function: with PFC function

Reliability: forward and reverse charging and discharging, high reliability

Standard: RoHS Compliant

Output voltage: high output voltage and current accuracy, better than 1%

Weight: Weight≤2.0kg

Size: 260mm×150mm×65mm

Application: outdoor portable power supply; single-phase inverter; UPS, industrial battery charge and discharge

Description: The 2.2kW high-power bidirectional inverter module INV2200-BD circuit realizes digital power factor correction (PFC), forward LLC, and reverse full-bridge SPWM technology into a two-stage topology, realizes the integration of rectification and inverter, and uses MCU at the same time Programmable control of forward and reverse charging control commands, hardware-level and software-level short-circuit protection, and pure sine wave inverter voltage.

Product Details Data Sheet

2.2kW /220Vac High Power Bidirectional Inverter Module INV2200-BD Specifications

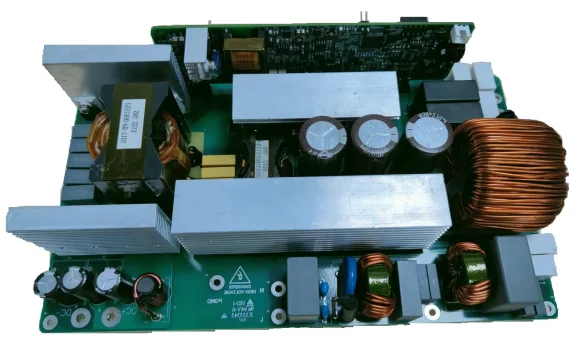

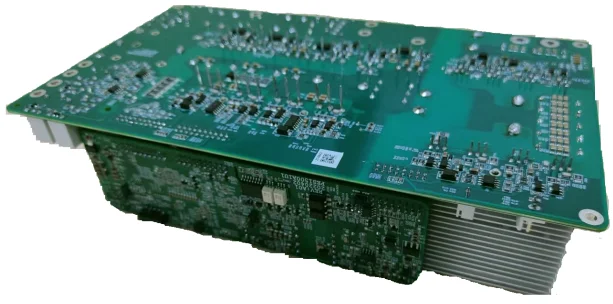

图片1Features

• Maximum efficiency: 94.5%

• With PFC function

• Can charge and discharge forward and reverse, high reliability

• RoHS Compliant

• High output voltage and current accuracy, better than 1%

• Weight≤2.0kg

• Dimensions: 260mm×150mm×65mm


Applications

• Outdoor portable power supply

• Single-phase inverter

• UPS, industrial battery charging and discharging





Description

The 2.2kW high-power bidirectional inverter module INV2200-BD circuit realizes digital power factor correction (PFC), forward LLC, and reverse full-bridge SPWM technology into a two-level topology to realize the integration of rectification and inverter, and use MCU programming control at the same time The forward and reverse charging control commands realize hardware-level and software-level short-circuit protection, and the inverter voltage realizes pure sine wave.







1.1 Electrical Characteristics Table 1

Table 1. Electrical Characteristics (Tj=25 °C unless otherwise specified)

AC Enter-DC Output

Symbol

Description

Conditions

Min.

Typ.

Max.

Units


VAC-IN

AC input voltage


176

220

264

V


f AC

input voltage frequency


45

50

65

Hz





P OUT



Output Power




1000W

W


V DC


The output voltage


42

50.4

58.8

V

η

efficiency

VAC =220 V

RMS / 50 Hz

Output power = 1000W






94.5










%

T AMB

ambient temperature


-40


45

°C

PF

power factor




0.99

-

AC-OVP

Input undervoltage protection


176



V

AC-UVP

Input overvoltage protection




264

V

DC-OVP

Output overvoltage protection




support


DC-SHORT

Output short circuit protection




support


1.2 Electrical Characteristics Table 2

Table 2. Electrical Characteristics (Tj=25 °C unless otherwise specified)


DC Enter-AC Output

Symbol

Description

Conditions

Min.

Typ.

Max.

Units


VDC-IN

DC input voltage


42

50.8

58.8

V

F AC

    output voltage frequency


40

50

60

Hz

W

output waveform



pure sine wave



VAC

output AC voltage



220


V

η

Efficiency (resistive load)

VAC =220 V

RMS / 50 Hz

Output power = 1100 W






94.5










%





P OUT



Output Power




2200

W

T AMB

ambient temperature


-40


45

°C

P-Protect

Output overload protection


2500



W

P-Short

Output short circuit protection



support

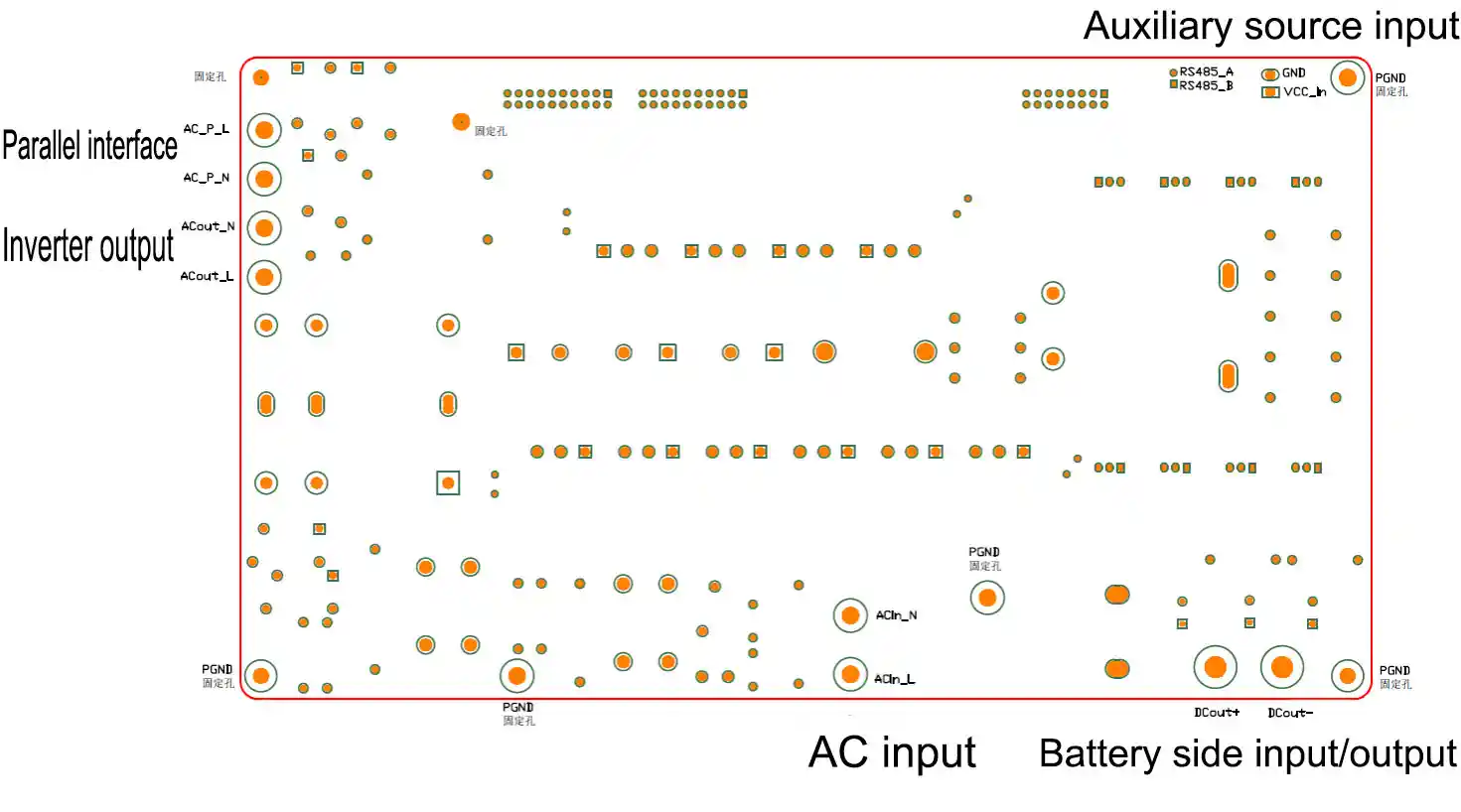

2 Schematic diagram of the interface图片3

We provide High Power PCB Assembly, bidirectional inverter module PCB assembly, new energy science PCB assembly services. Kingford is your one-stop PCB Assembly factory.

Name:Bidirectional inverter module PCB assembly

Efficiency: Maximum Efficiency: 94.5%

Function: with PFC function

Reliability: forward and reverse charging and discharging, high reliability

Standard: RoHS Compliant

Output voltage: high output voltage and current accuracy, better than 1%

Weight: Weight≤2.0kg

Size: 260mm×150mm×65mm

Application: outdoor portable power supply; single-phase inverter; UPS, industrial battery charge and discharge

Description: The 2.2kW high-power bidirectional inverter module INV2200-BD circuit realizes digital power factor correction (PFC), forward LLC, and reverse full-bridge SPWM technology into a two-stage topology, realizes the integration of rectification and inverter, and uses MCU at the same time Programmable control of forward and reverse charging control commands, hardware-level and software-level short-circuit protection, and pure sine wave inverter voltage.

Just upload Gerber files, BOM files and design files, and the KINGFORD team will provide a complete quotation within 24h.
