Data should be provided for PCBA patch processing
1. Complete PCB board files (Gerber files, placement maps, steel mesh files) and board making requirements;
2. Complete BOM (including model, brand, package, description, etc.);
3. PCBA assembly drawing.
PS: Report the PCBA function test fee, and provide the PCBA function test method.

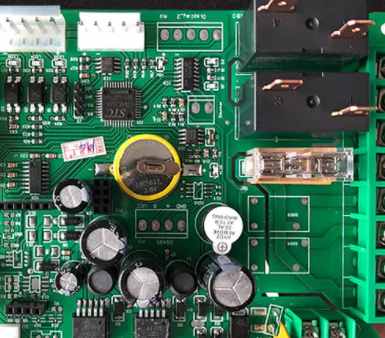

PCBA patch processing process
1. Make SMT production process documents and generate SMT coordinate documents according to customer Gerber documents and BOM documents;
2. Check whether all production materials are ready, make a complete set of orders, and confirm the PMC plan of production;
3. Perform SMT programming, and make the first plate for verification to ensure correct;
4. According to SMT process, make laser steel mesh;
5. Carry out solder paste printing to ensure that the solder paste after printing is uniform, good thickness and consistent;
6. Mount components on the circuit board through SMT mounter, and carry out online AOI automatic optical detection if necessary;
7. Set the perfect reflow furnace temperature curve, so that the circuit board flows through reflow welding, tin paste from paste, liquid to solid state transformation, after cooling can achieve good welding;
8. After necessary IPQC inspection;
9. DIP plug-in process will pass the plug-in material through the circuit board, and then through wave soldering for welding;
10. Necessary post-furnace process, such as cutting feet, post-welding, plate cleaning, etc.;
11. QA conducts comprehensive inspection to ensure the quality is OK.
2. Types of pad in PCB design
In PCB design, pad is a very important concept, PCB engineers must be familiar with it. However, although familiar, many engineers on the pad knowledge is only a little.
What is a pad?
Pad, the basic component unit of surface mount assembly, used to form the land pattern of the circuit board, that is, a variety of pad combinations designed for special component types. A partial conductive pattern used for electrical connection, device fixation, or both.
Types of pad in PCB design
First, common welding pad
1, square pad - printed board components large but few, and printed wire is simple when more. The pad is easy to realize when making PCB by hand.
2. Circular pad -- widely used in single and double-sided printed boards with regular arrangement of components. If the density of the plate allows, the pad can be larger, welding will not fall off.
3. Island pad -- the connection between the pad and the pad is integrated. It is often used in vertical irregular arrangement installation.
4, polygon pad - used to distinguish the outside diameter close to the aperture of different pads, easy to process and assembly.
5, oval pad - This pad has enough area to enhance stripping resistance, often used in dual in-line devices.
6, open shape pad - in order to ensure that after wave soldering, so that manual repair welding pad hole is not sealed by solder often used.
Two, special pad
1, plum welding pad
Plum pad is usually used in the position of large through-hole grounding, which is designed for the following reasons:
1) The fixed hole needs to be metallized and GND connected. If the fixed hole is fully metallized, it is easy to block the hole during reflow welding.
2) The use of internal metal screw holes may be due to installation or multiple disassembly, resulting in the ground in a bad state. The use of plum hole pad, no matter how the stress changes, can ensure good grounding.
2, cross welding pad
Cross welding pad is also called hot welding pad, hot air welding pad, etc. Its function is to reduce the external heat dissipation of the pad during welding, in order to prevent virtual welding or PCB peeling caused by excessive heat dissipation.
1) When your pad is ground. Cross flowers can reduce the area of ground wire connection, slow down the heat dissipation speed, convenient welding.
2) When your PCB is a machine patch and is a reflow welder, cross stitch pads will prevent peeling of the PCB (because more heat is needed to melt the solder paste).
3. Tear drop pad
It is often used when the welding pad is connected with a thin wire, to prevent the welding pad from peeling, the wire and the welding pad from being disconnected. This pad is commonly used in high frequency circuits.
