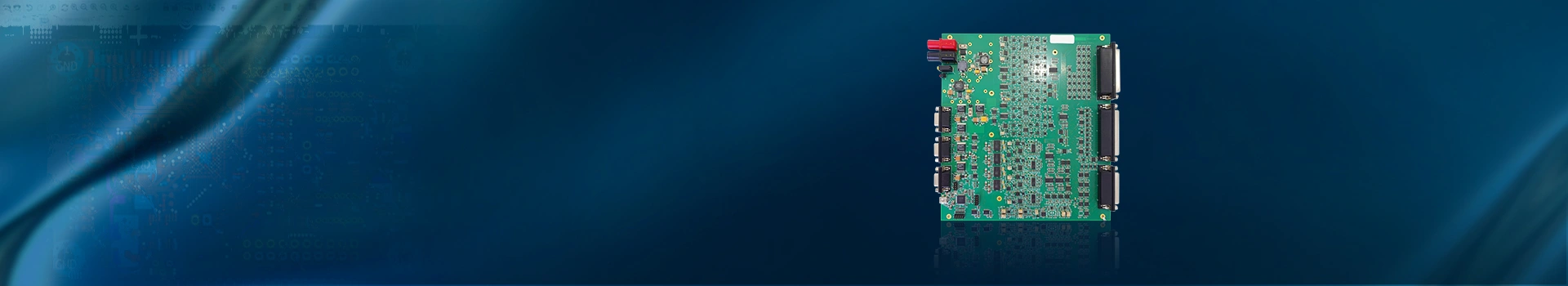

Industrial PCB Assembly
Industrial PCB Assembly
Digital image acquisition and processing system PCB assembly

Digital image acquisition and processing system PCB assembly

technical parameter

  • 32 I/O inputs and 64 I/O outputs

  • 2-way optical isolation RS232

  • 1 RS422 interface and 1 RS485 interface

  • 48-way 16-bit synchronous 200KSPS A/D conversion

  • One photoelectric isolation CAN interface and one GPS timing

  • Built-in real-time clock, power monitoring and watchdog, etc.

  • Support -40~85℃ industrial wide temperature application

Product Details Data Sheet

main chipset

Digital image acquisition and processing system chip

A piece of DSP TMS320C13B chip, NVRAM 2M bytes

  • Two FPGA Lattice LFXP6C chips

  • DSP chip 2MB FLASH, 8MB SDRAM


technical parameter

  • 32 I/O inputs and 64 I/O outputs

  • 2-way optical isolation RS232

  • 1 RS422 interface and 1 RS485 interface

  • 48-way 16-bit synchronous 200KSPS A/D conversion

  • One photoelectric isolation CAN interface and one GPS timing

  • Built-in real-time clock, power monitoring and watchdog, etc.

  • Support -40~85℃ industrial wide temperature application


circuit diagram

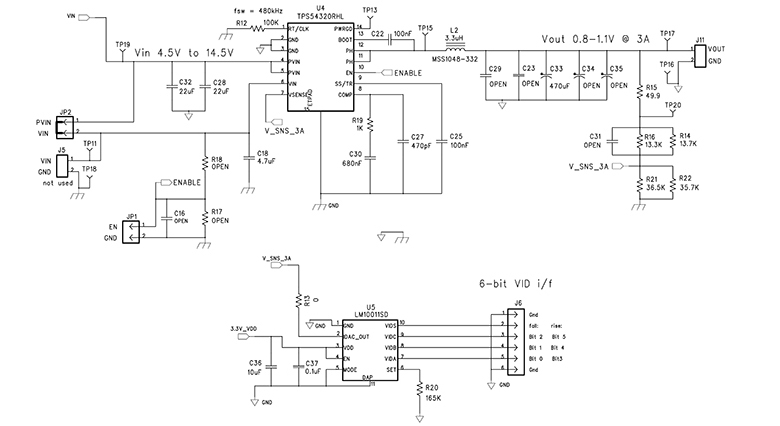

Digital image acquisition and processing system circuit diagram 1

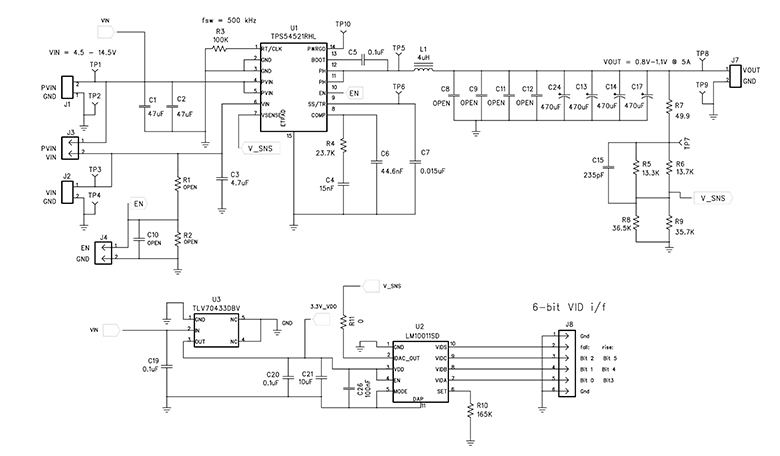

Digital image acquisition and processing system circuit diagram 2

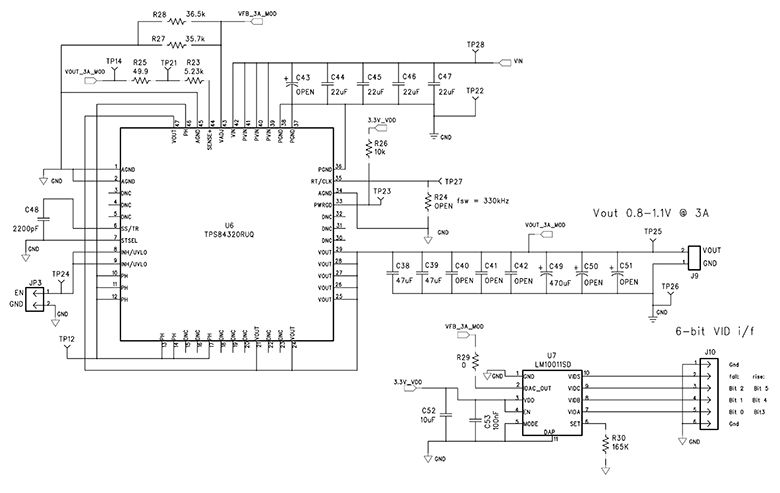

Digital image acquisition and processing system circuit diagram 3

Introduction to PCBA of Digital Image Acquisition and Processing System

    The digital image acquisition and processing system PCBA can realize high-speed image acquisition and storage of the camera, compress and serially communicate with the PC to realize the transmission of image data, realize image processing and display on the PC, etc. The PCBA design mode of the digital image acquisition and processing system adopts the hardware acquisition-software processing mode. After the image is sampled and quantized, it is converted into a digital image and input and stored in the frame memory. The image is analyzed by a computer to achieve the desired result. Digital image acquisition and processing system PCBA can be used in video conferencing, security monitoring, traffic charges, industrial inspection, image acquisition and other various image acquisition, processing and analysis fields.


    Kingford provides Digital image acquisition and processing system PCB assembly services. This is a PCBA one-stop assembly factory with senior industry experience. Welcome to know us


technical parameter

  • 32 I/O inputs and 64 I/O outputs

  • 2-way optical isolation RS232

  • 1 RS422 interface and 1 RS485 interface

  • 48-way 16-bit synchronous 200KSPS A/D conversion

  • One photoelectric isolation CAN interface and one GPS timing

  • Built-in real-time clock, power monitoring and watchdog, etc.

  • Support -40~85℃ industrial wide temperature application

Just upload Gerber files, BOM files and design files, and the KINGFORD team will provide a complete quotation within 24h.
