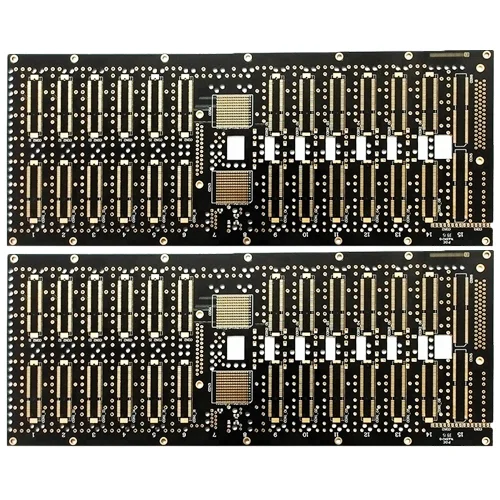

Rogers RT5870 High Frequency Board
Product Name: Rogers RT5870 High Frequency Board
Product Type: Rogers RT/duroid 5870 High Frequency Board
Material: Rogers RT/duroid 5870
Number of layers/plate thickness: 2 layers/0.9mm
Line width/line spacing: 0.762mm
Application areas: commercial aerospace broadband antennas, microstrip lines and strip circuits, millimeter wave equipment, radar systems, missile guidance systems, point-to-point digital radio frequency antennas
Rogers RT5870 High Frequency Board
Name: Rogers RT5870 High Frequency Board
Material : Rogers RT5870
Layer : 2L
DK: 2.33
Dielectric Thickness: 0.762mm
Thermal Conductivity : 0.69w/m.k
Volume Resistivity: 1.2*1010
Surface Resistivity: 5.7*109
Finished Thickness : 0.85MM
Surface Treatment : Immersion Gold
Application : Commercial avionics pcb , microstrip and stripline pcb, millimeter wave applications pcb, missile
Name: Rogers 4003 PCB
Material: Rogers 4003 material
rogers 4003 dielectric constant: 3.38
Layer: 4003+4450F
rogers 4003 thickness: 0.508mm(20mil)
Finished Thickness: 2.0mm
Rogers 4003 substrate Copper Thickness: 17μm
Finished Copper Thickness: 1OZ
SurfaceTreatment: Immersion Gold
Color:Green /White
Min Trace / Space: 6mil/6mil
Features: Rogers PCB, tg280 high temperature resistant PCB
PCB high frequency microwave hybrid PCB
Name: PCB high frequency microwave hybrid plate
Layers: 6 layers
Plate thickness: 1.6±0.14mm
Plate used: Rogers4350B+FR4 Shengyi
Dielectric constant: 2.2±0.02
Dielectric loss factor: 0.0009
Z small aperture: 0.3mm
Surface Treatment: Immersion Gold ENIG
Z line width/spacing: 0.2mm/0.3mm
Process features: special materials, Rogers4350B+FR4 Shengyi mixed lamination
Name: Rogers Printed circuit board(PCB)
Material: rogers PCB material
Quality standard: IPCB6012 Class2 or Class3
Rogers PCB material dielectric constant: 2.2-16
the texture of material: rogers ceramic PCB
Layers: 1layer - multilayer hybrid PCB
Thickness: 0.1mm - 12mm
Copper thickness: 0.5oz - 3oz
Surface technology: Silver, Gold, OSP
Application: High frequency rogers microwave PCB
Rogers RO4003C High Frequency PCB Board
Name: Rogers RO4003C High Frequency PCB Board
Darkness: 3.38±0.04
Layers: 2 layers
Dielectric thickness: 0.508mm (20mil)
Finished thickness: 0.6mm
Material Copper Thickness: ½(17μm)
Finished copper thickness: 1OZ (35μm)
Surface treatment: Immersion silver
Applications: Communication infrastructure, computers, aerospace
Name: Rogers 4003 PCB
rogers 4003 dielectric constant: 3.38
Layer: 4003+4450F
rogers 4003 thickness: 0.508mm(20mil)
Finished Thickness: 2.0mm
Rogers 4003 substrate Copper Thickness: 17μm
Finished Copper Thickness: 1OZ
SurfaceTreatment: Immersion Gold
Color:Green /White
Min Trace / Space: 6mil/6mil
Features: Rogers PCB, tg280 high temperature resistant PCB
4-layer Rogers spray tin PCB board
Name: 4-layer Rogers spray tin PCB board
Plate: Rogers4350B
Layers: 4L
Plate thickness: 1.6mm
Outer copper thickness: 2 OZ
Inner copper thickness: 1 OZ
Minimum hole diameter: 0.3mm
Minimum line width/line spacing: 5mil
Surface treatment: spray tin
Product use: base station sub board
Process difficulty: lead-free spray tin
6-layer high-frequency hybrid board
Name: 6-layer high-frequency hybrid board
Layers: 6L
Plate used: Rogers4350B+FR4
Surface Treatment: Immersion Gold
Product features: high frequency hybrid plate
Application area: ETC system control board
Special process: 5-6 blind holes
Line width and line spacing: 5/4MIL
Aperture plate thickness ratio: 1:10
- PCB Manufacturing Equipment
- PCB Capability
- PCB Materials
PCB Drilling machine
PCB pattern plating line
PCB solder mask expose machine
PCB pattern expose machine
Strip film etching line
Solder mask screen silk print machine
Solder mask scrubbing line
PCB Flying Probe Test (FPT)
Fully automatic exposure machine
| Item | Capability |
| Layer Count | 1-40layers |
| Base Material | KB、Shengyi、ShengyiSF305、FR408、FR408HR、IS410、FR406、GETEK、370HR、IT180A、Rogers4350B、Rogers4000、PTFE Laminates(Rogers series、Taconic series、Arlon series、Nelco series)、Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| Board Type | Backplane、HDI、High multi-layer 、blind&buried PCB、Embedded Capacitance、Embedded resistance board 、Heavy copper power PCB、Backdrill. |
| Board Thickness | 0.2-5.0mm |
| Copper Thickness | Min. 1/2 OZ, Max. 10 OZ |
| PTH Wall | 25um(1mil) |
| Maximum Board Size | 1100*500mm(43”*19”) |
| Min laser drilling size | 4mil |
| Min. Spacing/Tracing | 2.7mil/2.7mil |
| Solder Mask | Green, Black, Blue, Red, White, Yellow, Purple matte/glossy |
| Surface Treatment | Flash gold(electroplated gold)、ENIG、Hard gold、Flash gold、HASL Lead-free 、OSP、ENEPIG、Soft gold、Immersion silver、Immersion Tin、ENIG+OSP, ENIG+Gold finger, Flash gold(electroplated gold)+Gold finger, Immersion silver+Gold finger, Immersion Tin+Gold finger. |
| Min. Annular Ring | 3mil |
| Aspect ratio | 10:1(HASL Lead-free 、HASL Lead、ENIG、Immersion Tin、Immersion silver、ENEPIG);8:1(OSP) |
| Impedance control | ±5ohm(＜50ohm), ±10%(≥50ohm) |
| Other Techniques | Blind/Buried Via |
| Gold Fingers | |
| Press Fit | |
| Via in Pad | |
| Electrical Test |
| Here there’re many laminate material datasheets, they’re useful and helpful for you, please see them: | ||||||||
| SUPPLIER | PCB LAMINATE | TYPE | MATERIAL DATASHEET | TG | TD | DK(1MHZ) | DK(1GHZ) | DK(10GHZ) |
| KB | KB-6160 | FR4 | DOWNLOAD | 135 | 305 | 4.35 | – | – |
| KB-6160A | FR4 | DOWNLOAD | 135 | 305 | 4.35 | – | – | |
| KB-6160C | FR4 | DOWNLOAD | 135 | 314 | 4.7 | – | – | |
| KB-6150 | FR4 | DOWNLOAD | 132 | 305 | 4.6 | – | – | |
| KB-6150C | ||||||||
| KB-6164 | FR4 | DOWNLOAD | 142 | 330 | 4.8 | – | – | |
| KB-6164F | FR4 | DOWNLOAD | 145 | 340 | 4.8 | – | – | |
| KB-6165F | FR4 | DOWNLOAD | 150 | 346 | 4.8 | – | – | |
| KB-6167F | FR4 | DOWNLOAD | 170 | 349 | 4.8 | – | – | |
| SHENGYI | S1141 | FR4 | DOWNLOAD | 135 | 310 | 4.6 | – | – |
| S1141KF | FR4 | DOWNLOAD | 140 | 350 | 4.7 | – | – | |
| S1000 | FR4 | DOWNLOAD | 155 | 335 | 4.9 | – | – | |
| S1170 | FR4 | DOWNLOAD | 170 | 335 | 4.6 | – | – | |
| S1000-2 | FR4 | DOWNLOAD | 170 | 335 | 4.8 | – | – | |
| S1155 | FR4 | DOWNLOAD | 135 | 370 | 4.7 | – | – | |
| ITEQ | IT-158 | FR4 | DOWNLOAD | 150 | 340 | 4.6-4.8 | – | – |
| IT-180 | FR4 | DOWNLOAD | 180 | 350 | 4.5-4.7 | – | – | |
| TUC | TU-768 | FR4 | DOWNLOAD | 180 | 350 | – | 4.3-4.4 | 4.3 |
| TU-872 | Modified Epoxy | DOWNLOAD | 200 | 340 | – | 3.8-4.0 | 3.8 | |
| ROGERS | RO 3003 | Cer/PTFE | DOWNLOAD | – | 500 | – | – | 3 |
| RO 3010 | Cer/PTFE | DOWNLOAD | – | 500 | – | – | 10.2 | |
| RO 4003 | Hydrocarbon/Cer | DOWNLOAD | >280 | 425 | – | – | 3.38 | |
| RO 4350B | Hydrocarbon/Cer | DOWNLOAD | >280 | 390 | – | – | 3.48 | |
| RT/duroid 5880 | PTFE/Glass | DOWNLOAD | – | 500 | – | – | 2.2 | |
| ISOLA | Polyclad 370HR | FR4 | DOWNLOAD | 170 | 340 | 4.8-5.1 | – | – |
| FR406-HR | FR4 | DOWNLOAD | 190 | 325 | 3.91 | 3.86 | 3.81 | |
| FR408-HR | FR4 | DOWNLOAD | 200 | 360 | 3.72 | 3.69 | 3.65 | |
| P96 | Polyimide | DOWNLOAD | 260 | 416 | – | 3.78 | 3.73 | |
| Hitachi | MCL-BE- 67G | Modified Epoxy | DOWNLOAD | 140 | 340 | 4.9 | 4.4 | – |
| MCL-E-679F | FR4 | DOWNLOAD | 170 | 350 | 4.2-4.4 | 4.3-4.5 | – | |
| MCL-LX-67Y | Special Laminate | DOWNLOAD | 185-195 | 325-345 | – | 3.4-3.6 | – | |
| Nelco | N4000-13 | Modified Epoxy | DOWNLOAD | 210-240 | 365 | – | 3.7 | 3.6 |
| N4000-13EP | Modified Epoxy | DOWNLOAD | 210-240 | 350 | – | 3.4 | 3.2 | |
| N4000-13SI | Modified Epoxy | DOWNLOAD | 210-240 | 350 | – | 3.4 | 3.2 | |
| N4000-13EP SI | Modified Epoxy | DOWNLOAD | 210-240 | 350 | – | 3.4 | 3.2 | |
| Taconic | TLX-6 | PTFE | DOWNLOAD | – | – | – | – | 2.65 |
| TLX-7 | PTFE | DOWNLOAD | – | – | – | – | 2.6 | |
| TLX-8 | PTFE | DOWNLOAD | – | – | – | – | 2.55 | |
| TLX-9 | PTFE | DOWNLOAD | – | – | – | – | 2.45 | |
| RF35 | PTFE | DOWNLOAD | <315 | – | 3.5 | – | 3.5 | |
| TLC-27 | PTFE | DOWNLOAD | – | – | – | – | 2.75 | |
| TLC-30 | PTFE | DOWNLOAD | – | – | – | – | 3 | |
| TLC-32 | PTFE | DOWNLOAD | – | – | – | – | 3.2 | |
| Arlon | Arlon 25N | Cer | DOWNLOAD | 260 | – | – | – | 3.38 |
| Arlon 25FR | Cer | DOWNLOAD | 260 | – | – | – | 3.58 | |
| Arlon 33N | Polymide | DOWNLOAD | >250 | 353 | 4 | – | – | |
| Arlon 35N | Polymide | DOWNLOAD | >250 | 363 | 4.2 | – | – | |
| Arlon 85N | Polymide | DOWNLOAD | 250 | 387 | 4.2 | – | – | |
| Stablcor | ST325 | – | DOWNLOAD | Thermal conductivity:75w/m.k(with 1oz copper) | ||||
| ST10 | – | DOWNLOAD | Thermal conductivity:325w/m.k(with 1oz copper) | |||||
| Panasonic | R-1566W | FR4 | DOWNLOAD | 140 | 330 | 4.95 | 4.7 | 4.65 |
| Ventec | VT-901 | Polymide | DOWNLOAD | 250 | 390 | 4.2-4.5 | 4.0-4.3 | – |
| VT-90H | Polymide | DOWNLOAD | 250 | 390 | 4.2-4.5 | 4.0-4.3 | – | |
| Bergquist | ht-04503 | – | DOWNLOAD | Thermal conductivity:2.2w/m.k(with 1oz copper) | ||||
