Through Hole PCB Assembly
Through Hole PCB Assembly
Smart Electronic Through Hole PCB Assembly
Smart Electronic Through Hole PCB Assembly

Smart Electronic Through Hole PCB Assembly

Name: Smart Electronic Through Hole PCB Assembly

Substrate: FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers

Copper Thickness: 1/3OZ- 6OZ

Plate thickness: 0.21-6.0mm

minute. Hole size: 0.20mm

minute. Line width: 4 million

minute. Line spacing: 0.075 mm

Surface treatment: spray tin/gold drill/OSP/lead-free spray tin

Board size: minimum 10*15mm, maximum 508*889mm

Product Type: OEM&ODM

PCB standard: IPC-A-610 D/IPC-III standard

Certificate: ISO9001/ CE//TUV/ ROHS

Warranty: 1 year

Service: One-stop turnkey service

Electronic testing: 100%

Logistics: Air/Sea

Product Details Data Sheet

     In the power industry, intelligent electronic devices including power equipment, transformers, capacitors and power system devices (such as bank microprocessors) are mainly used to represent controllers used to control electricity.

     Intelligent electronic devices receive data from sensors and power supplies, and issue control commands to circuit breakers when abnormalities in voltage, current, and frequency are detected, and control voltage levels to maintain desired levels. You can general intelligent electronic equipment, protective relays, road tap changer controllers, circuit breaker controllers, capacitor bank switches, recloser controllers and other voltage regulators. These are usually controlled by configuration files.

     Digital protection relay is the most important relay. Its protection function executes the control function by using microprocessors. Typical IED has about 5 to 12 protection functions, and 5 to 8 to control the control function of a single device, automatic overlapping function, self -monitoring function, communication function, etc.

     Among the recent intelligent electronic devices, IEC 61850 (English version) also meets design standards. This standard involves the automation of substations and provides interoperability and advanced communication functions.

     We support Smart Electronic Through Hole PCB Assembly business, Kingford is a professional one-stop PCBA service factory, welcome to place an order

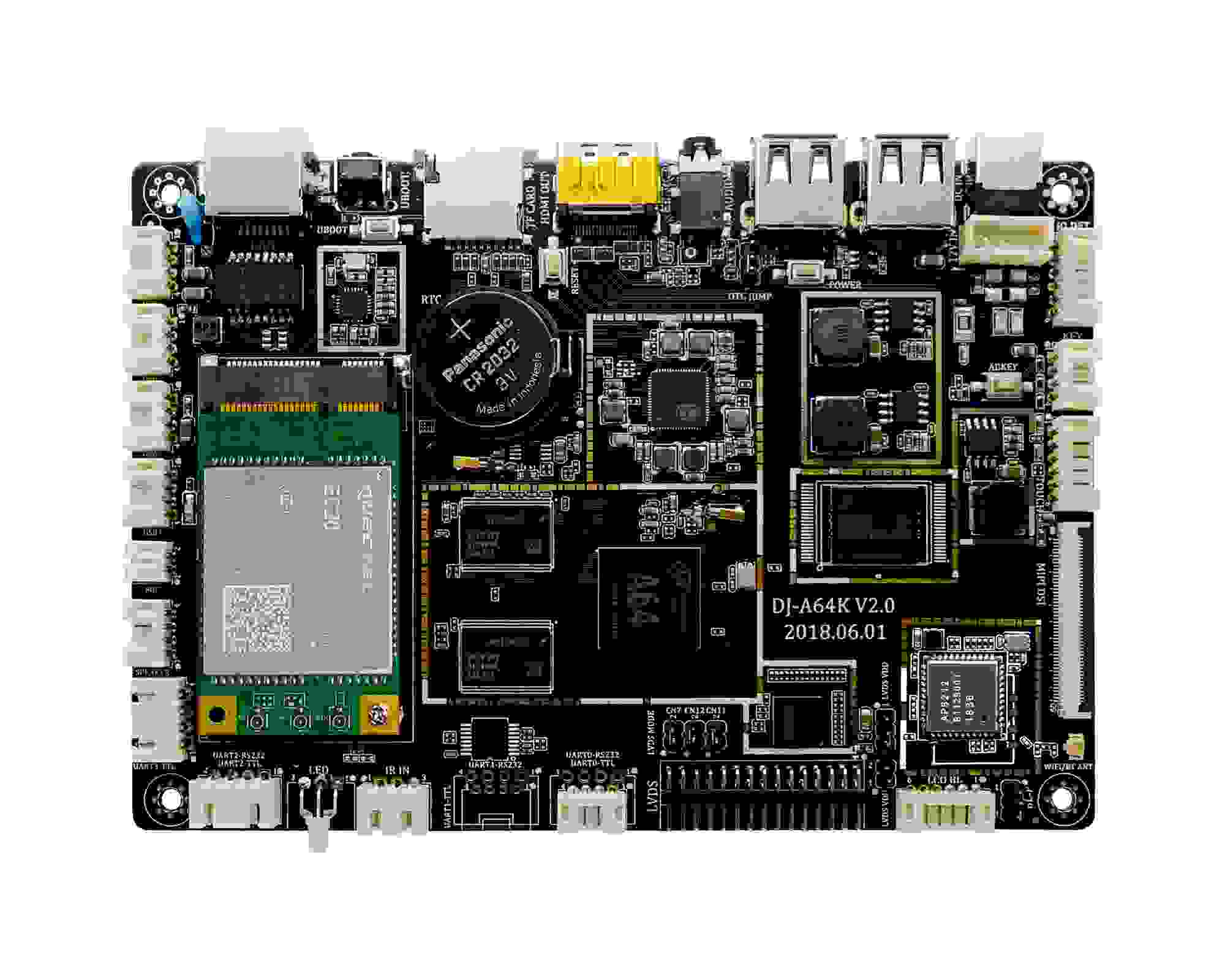

pIYBAF2gYNuAYuRXABgCt9MhFOg272 (1)

Name: Smart Electronic Through Hole PCB Assembly

Substrate: FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers

Copper Thickness: 1/3OZ- 6OZ

Plate thickness: 0.21-6.0mm

minute. Hole size: 0.20mm

minute. Line width: 4 million

minute. Line spacing: 0.075 mm

Surface treatment: spray tin/gold drill/OSP/lead-free spray tin

Board size: minimum 10*15mm, maximum 508*889mm

Product Type: OEM&ODM

PCB standard: IPC-A-610 D/IPC-III standard

Certificate: ISO9001/ CE//TUV/ ROHS

Warranty: 1 year

Service: One-stop turnkey service

Electronic testing: 100%

Logistics: Air/Sea

Just upload Gerber files, BOM files and design files, and the KINGFORD team will provide a complete quotation within 24h.
